Nautic Star 215 XTS Center Console Boat Cover & Canvas

NauticStar 215 XTS Specifications

  • Builder: NauticStar (Amory, Mississippi; founded 2002)
  • Model: 215 XTS (factory data 2017 and 2020; listings to 2023)
  • Length: 21' 2"
  • Beam: 8' 2" (98")
  • Weight: about 1,600 lb
  • Fuel: 59 gal
  • Power: Single outboard, 150 hp max (200 hp with SeaStar Pro steering)
  • Deadrise: 13.4° at transom
  • Draft: about 12"
  • Cover Shipping Weight: 31 lbs

Cover Features

  • Fabric Options: 9oz solution-dyed marine fabric or premium Sunbrella acrylic
  • Coverage: Full custom cover over the console, leaning post, casting decks, cockpit and outboard, sloped to the rubrail
  • Construction: Reinforced stitching, hem cord at the rubrail, adjustable tie-down straps
  • Protection: UV-resistant, water-repellent, breathable

Description

Additional information

Choose Your Cover Fabric

7 oz. Polyester — Our entry-level marine cover fabric, woven from 100% polyester fiber at a 7 oz. per linear yard weight. This lighter option keeps the cover manageable for solo handling while still delivering reliable protection against sun, rain, and debris. Backed by a 3-year fabric warranty. Ships in Black.

9 oz. Polyester — Step up to our heavy-duty polyester, engineered at 9 oz. per linear yard for boats that face tougher conditions or extended outdoor storage. The denser weave adds an extra layer of defense against abrasion and weather without adding unnecessary bulk. Protected by a 5-year fabric warranty. Ships in Navy or Black.

Sunbrella® — For boaters who want the best, our Sunbrella covers use 100% solution-dyed acrylic — the same fabric trusted by marine professionals worldwide. Naturally resistant to fading, mold, and water damage, Sunbrella holds its color and integrity season after season. Covered by a 6-year fabric warranty. Ships in Black, Smoke, or Marine Blue.

Both polyester options feature solution-dyed construction, where pigment is infused into each fiber during production rather than applied to the surface afterward. This process locks color deep into the material, preventing any dye transfer to your boat’s gel coat or finish. The result is a cover that stays vibrant without bleeding or rubbing off. Our polyester is also designed to breathe — it allows moisture trapped underneath to vent out naturally, reducing the risk of mildew and keeping your boat dry. The fabric holds its form without sagging or stretching over time, stays lightweight enough for one person to handle, and stands up to prolonged UV exposure and harsh marine weather.

*The warranty periods above are provided by the fabric manufacturer and cover the material itself. For details on what’s included in the warranty for your completed cover, please see our warranty page.
Weight 31 lbs
Fabric

9oz Polyester

Install

Please watch the video below for installation instructions!
No more offers for this product!

Frequently Asked Questions

Center Console is our cover maker's name for the full-coverage style, made for any boat without a T-top or hardtop. It covers the whole boat in one piece from bow to stern and rubrail to rubrail, console, windshield and engine included. If your boat has a T-top, you want our T-Top style instead, which fits up under the top and leaves the roof exposed.
It's patterned for the 215 XTS (21'2" x 8'2") without a T-top. The shallow-bay 215 XTS SB shares the name; tell us if yours is the SB so we can confirm the fit. If your boat has a T-top, use our 215 XTS T-Top cover.
Yes. The leaning post sits under the peak of the cover and the flush rod boxes lie under the side panels. Take rods out of the console and post holders before covering.
Remove your trolling motor before installing the cover. Trolling motors come in too many styles to pattern around, so the cover isn't made to go over one, and the order form will ask you to confirm you'll remove it. If your boat has Power-Poles or other shallow-water anchors, select them in the Power Poles field when you order. A Power Pole Measurement Form will pop up; fill it in and email it to info@perfectfitboatcovers.com so we can cut the cover to fit around them.
Check the model on your registration or the hull plate and measure the overall length and beam: NauticStar lists the 215 XTS at 21'2" long with a 98" beam. NauticStar has built several similar sizes under different names over the years, so send us your model year, length, beam and whether the boat has a T-top before you order, and we'll confirm the 215 XTS pattern fits.
Choose 9oz solution-dyed polyester (Navy or Black) for heavy-duty everyday protection, or premium Sunbrella acrylic (Marine Blue, Black, or Smoke) for maximum UV resistance and longevity.
No. The cover is made to protect your boat while it is parked on its trailer, up on a lift or in storage. Take it off before you tow: trailering with the cover on can damage it and voids the warranty.
Materials and workmanship are covered for 1 year, and the fabric carries its own warranty (5 years on 9oz and 6 years on Sunbrella). Every cover is made to order, so please allow 1–3 weeks; shipping is a $30 flat rate within the continental US.
Pricing: 9oz $895.00  ·  Sunbrella $1,045.00 — your final total appears below as you build your cover.
  • *Materials

    *Fabric & Colors

    *Fabric & Colors

  • Cover Option

    Boat Option

    You have selected "Sea Pen" as your storage option. Please call our office at 843-760-6101 to place your order.

    Our covers are not designed for In Water use. Selecting this option is acknowledging that you will have to take the cover to a local canvas shop for modification and will void your warranty.

    Our covers are designed to fit best with the motors trimmed down. By choosing Jet Dock as a storage option, you are agreeing to modify your cover further if the fit at the motors isn't as desired.

    Motor Option

    Bow Option

    test

    A re-powered motor means the motor has been upgraded or there has been a change in the motor style from the original factory motor

    There is a variety of different style trolling motors. For this reason, trolling motor patterns are not available. You must remove trolling motor for cover to fit.

    Additional Option

    You have selected Powerpoles as an option. Measurements are needed in order to process your order. Please click the link below, fill in the measurements and send back to info@perfectfitboatcovers.com in order to fully process your order. Please include your name in the subject line. Power Pole Measurement Form

⏱️ Current lead time: 1–3 weeks — every cover is custom-made for your boat.
Questions about fit? Call (561) 677-2628

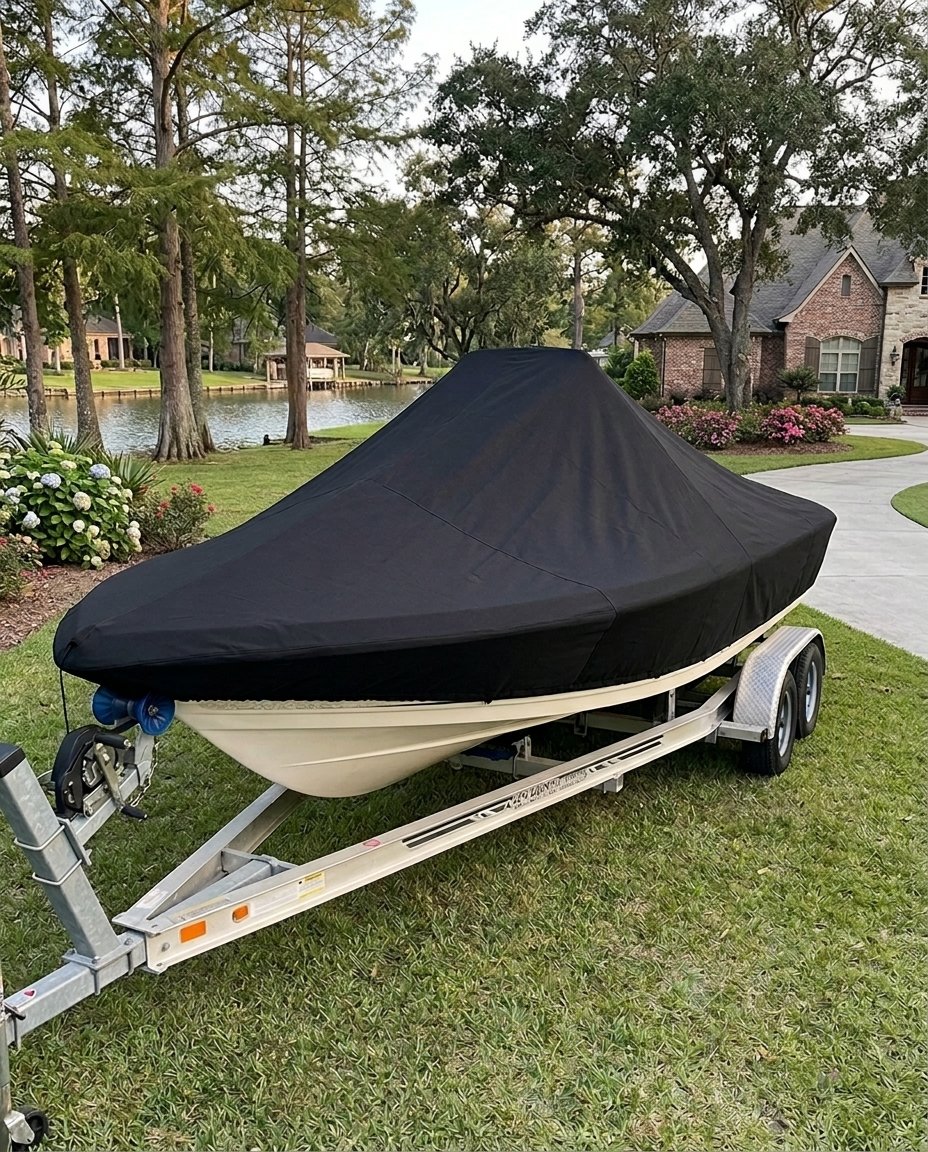

NauticStar 215 XTS Center Console Boat Cover — Custom-Fit for the NauticStar 215 XTS Without a T-Top

NauticStar builds its boats in Amory, Mississippi, where Phillip Faulkner founded the company in 2002; it became part of MasterCraft in October 2017 and joined Iconic Marine Group in 2022. The 215 XTS is the 21-foot model in NauticStar’s Extreme Tournament Series of bay boats, with factory data from the 2017 and 2020 model years and dealer listings into 2023; a shallow-bay tunnel version was sold as the 215 XTS SB. NauticStar lists it at 21’2″ long with a 98″ (8’2″) beam, about 1,600 lb, 59 gallons of fuel and a 150 hp maximum (200 hp with SeaStar Pro steering), with 13.4 degrees of deadrise at the transom, about a 12-inch draft and the air-assist chine and planing pods. It’s built to fish: 20 rod holders including dual five-rod boxes, a 13-gallon console livewell, a 27-gallon rear livewell, a 30-gallon bow fish box, a two-tone elevated console with a curved windshield, a leaning post with a 94-quart cooler and three-across jump seats. This full cover is patterned for the 215 XTS, and like all of our NauticStar boat covers, it’s cut to this hull rather than a generic 21-foot size chart.

How It Fits the 215 XTS

With no top in the way, the cover goes over the whole boat as one piece. It peaks over the elevated console and leaning post, runs forward over the flat bow casting deck to the rubrail along the 8’2″ beam, and falls aft over the jump seats and the rear deck. At the transom it closes around the outboard and any jack plate, so rain runs off instead of pooling on the low, flat decks. If your boat carries a bimini, fold it down into its boot before covering. Installation takes about five minutes: drape it bow to stern, run the hem cord along the rubrail, and cinch the adjustable strap-and-buckle tie-downs. It’s made for storage on a trailer, lift, dry stack, or jet dock — take it off before towing, since trailering with the cover on can damage it and voids the warranty.

Trolling Motors and Power-Poles

Remove your trolling motor before installing the cover. Trolling motors come in too many styles to pattern around, so the cover isn’t made to go over one, and the order form will ask you to confirm you’ll remove it. If your boat has Power-Poles or other shallow-water anchors, select them in the Power Poles field when you order. A Power Pole Measurement Form will pop up; fill it in and email it to info@perfectfitboatcovers.com so we can cut the cover to fit around them.

Fabric, Warranty & Shipping

Choose 9oz solution-dyed marine fabric for heavy-duty everyday protection (5–7 year service life) or premium Sunbrella acrylic for 8–10 years of fade resistance. Both are water-repellent, breathable, mildew-resistant, and double-stitched at the seams. Each cover is backed by our warranty (1 year on materials and workmanship, plus 5 years on 9oz and 6 years on Sunbrella) and ships for a $30 flat rate within the US — every cover is made to order, so please allow 1–3 weeks. If your 215 has a T-top, see our NauticStar 215 XTS T-Top cover; for the bigger XTS, see the NauticStar 244 XTS full cover.
